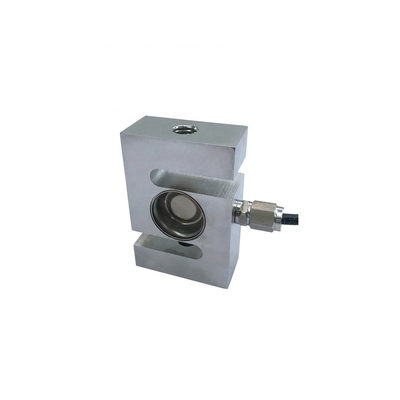

Crane Scale Tension And Compression S type load cell chamber for Crane Scales

1.0 Pieces
MOQ
Crane Scale Tension And Compression S type load cell chamber for Crane Scales
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: STE
Type: Load Cell
Usage: Crane Scale
Theory: Resistance Sensor
Output: Analog Signal
Description: S Type Load Cell
Rated Load: 50kg~5t
Accuracy: 0.03%FS
Rated Output: 2.0±0.003mV/V
Input Resistance: 400±20Ω
Water Proof: IP65,IP68(1.2t~5t)
Output Resistance: 352±3Ω
Temperature Range,compensated: -10~+40℃
Excitation Voltage: 5~12VDC
Material: Alloy Steel, Stainless Steel
Warranty: 1 Year
Basic Infomation
Model Number: STE
Payment & Shipping Terms
Packaging Details: Neutral packing or according to customers' requirements
Supply Ability: 500 Piece/Pieces per Day Tension And Compression Sensor STE, STF For Textile Machine
Product Description



Tension And Compression S Type Load Cell STE for Crane Scales



FEATURES

1.Capacities 50kg~5t;

2.Nickel plated alloy steel or stainless steel construction;

3.IP68 protection;



DESCRIPTION

Model STE is tension-compression load cell which share the same dimensions. Humidity resistant coating and shielded cables enable these load cells to be used in harsh environments while maintaining their operating specifications.



OUTLINE DIMENSIONS(mm)





Rated capacity L H H1 W T
50kg~750kg 51 76.2 24 19.1 M12
1t 51 76.2 24 25.4 M12
1.2t~5t 76.2 100.4 38 38.1 M20X1.5





SPECIFICATIONS
